PatternQ Demo

PatternQ is an app that turns subcellular fluorescence patterns into a simple 0–1 score.

Show it what 0 and 1 look like, and it learns from your examples and then scores new images.

No markers. No custom pipelines. Just your images with these two steps.

No images handy? Try it with example images (ZIP, ~38 MB).

1) Define Pattern

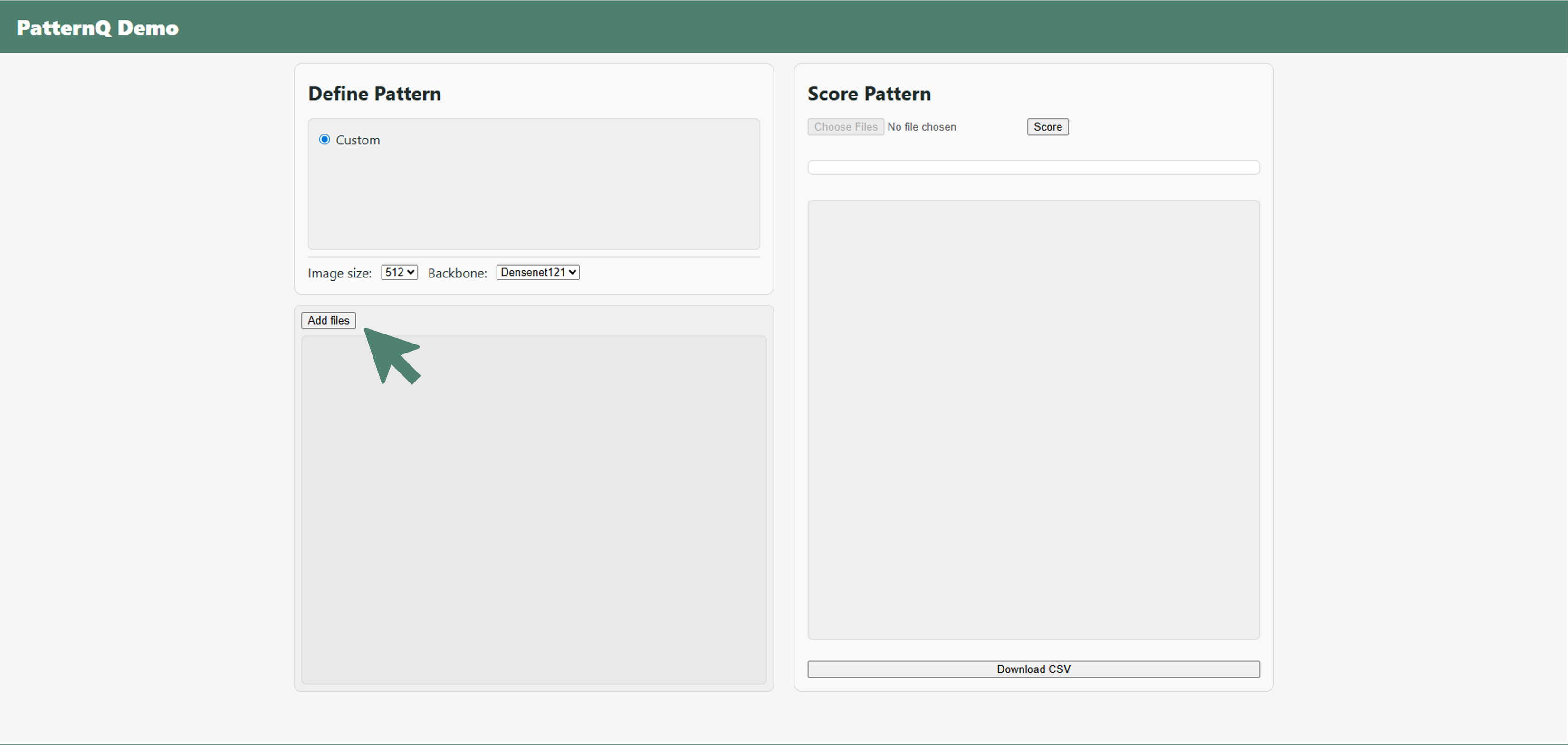

Add reference images — Add reference images of your patterns (single-channel .png or .tif).

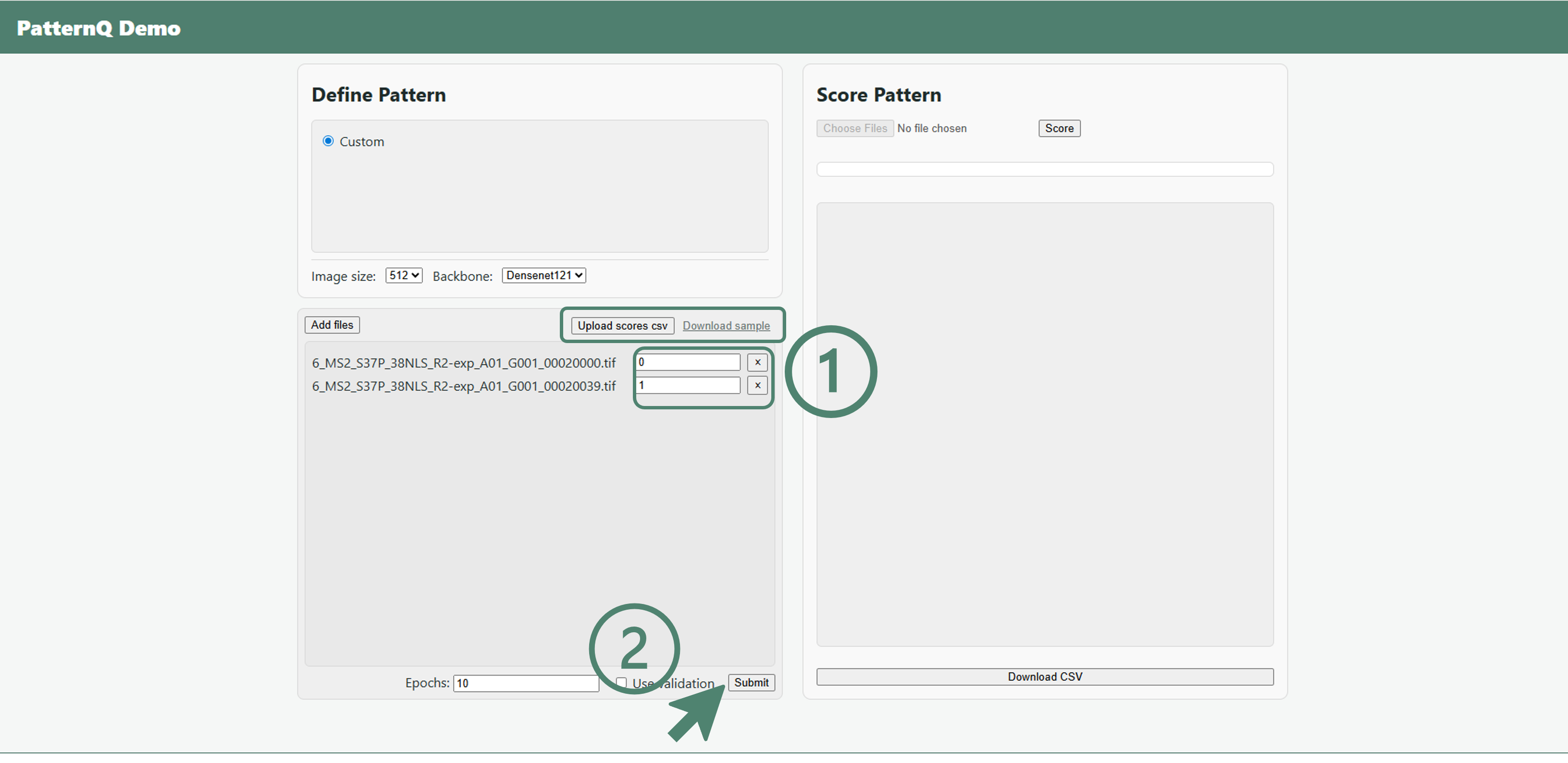

Give scores 0 and 1 — Give each image a score: 0 = one end, 1 = the other. Add in-betweens if you have them. Then click Submit

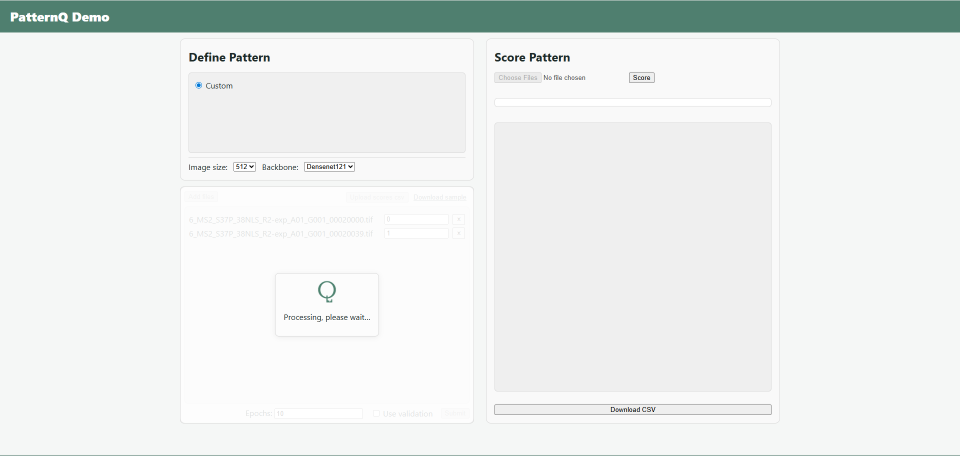

Submit to train — Wait. Grab a coffee. Might take a while if there are many images.

Reference thumbnails shown — Done. You'll see PatternQ's scores for your references.

2) Score Pattern

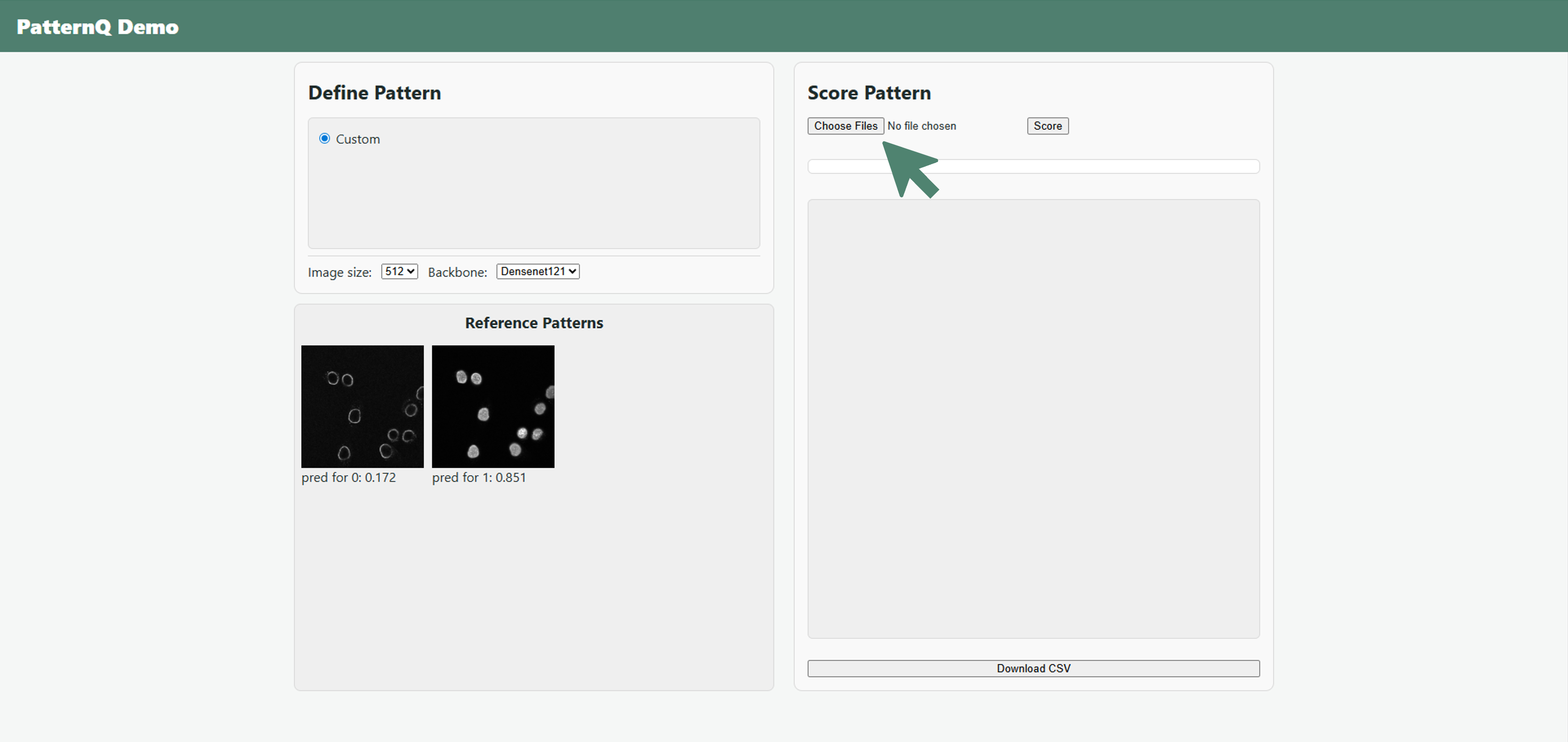

Choose files to score — Choose files to score (single-channel .png or .tif).

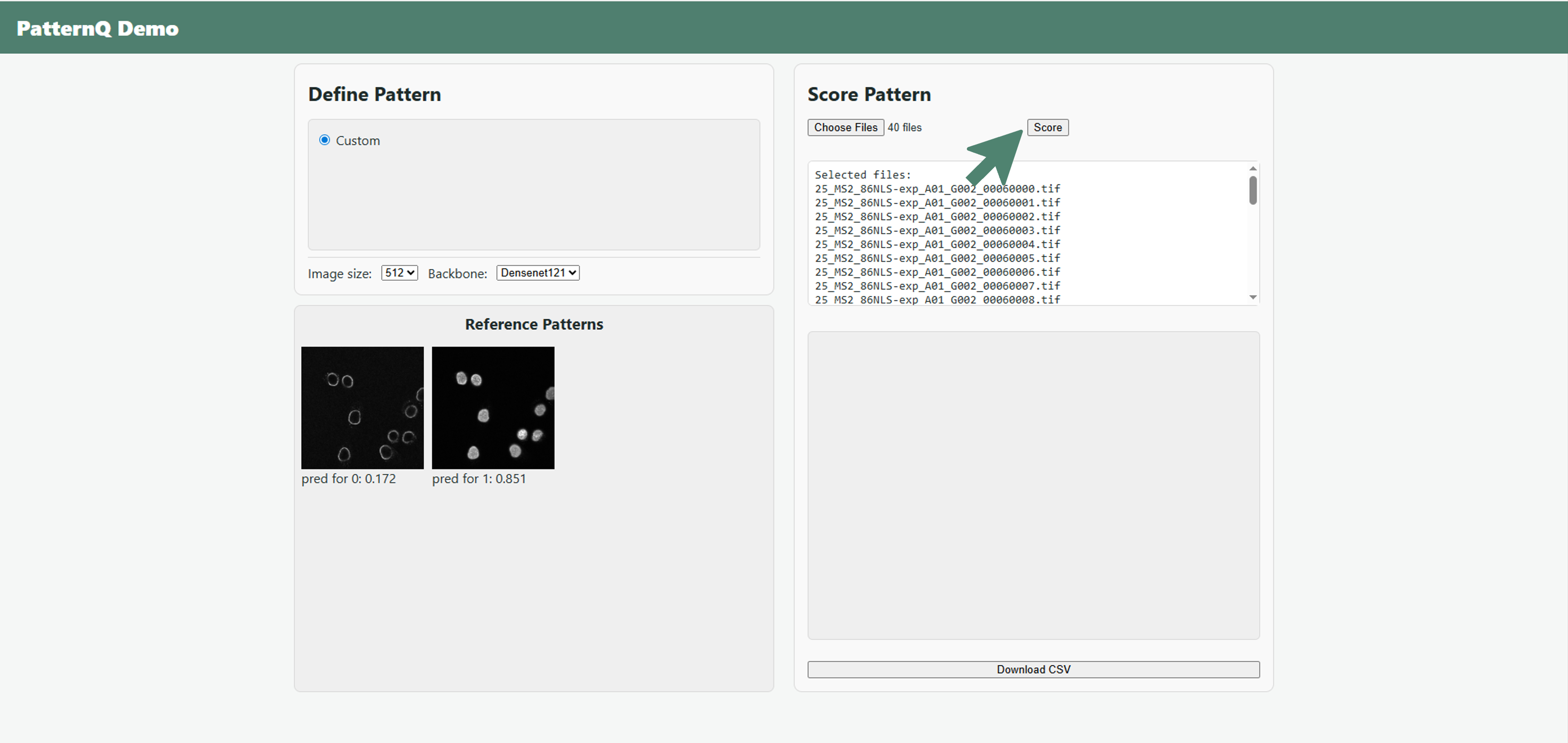

Click Score — Click Score.

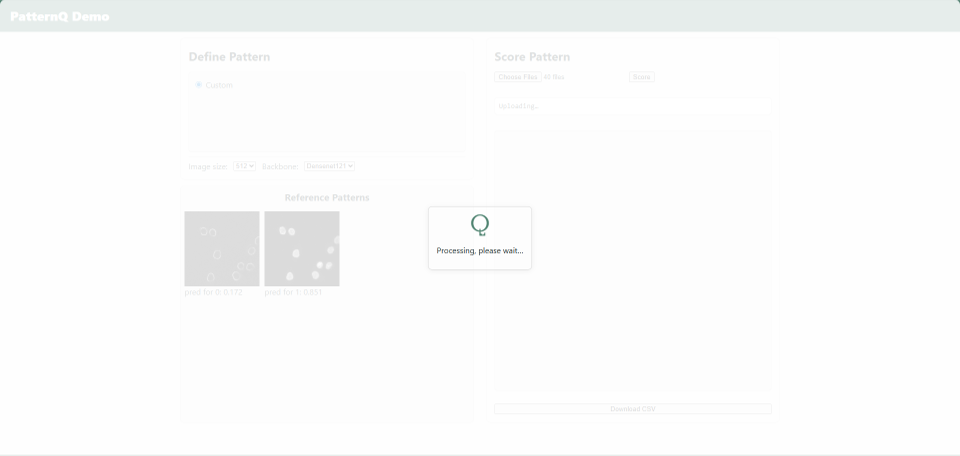

Scoring runs quickly — Wait. Don't grab a coffee. This part is fast.

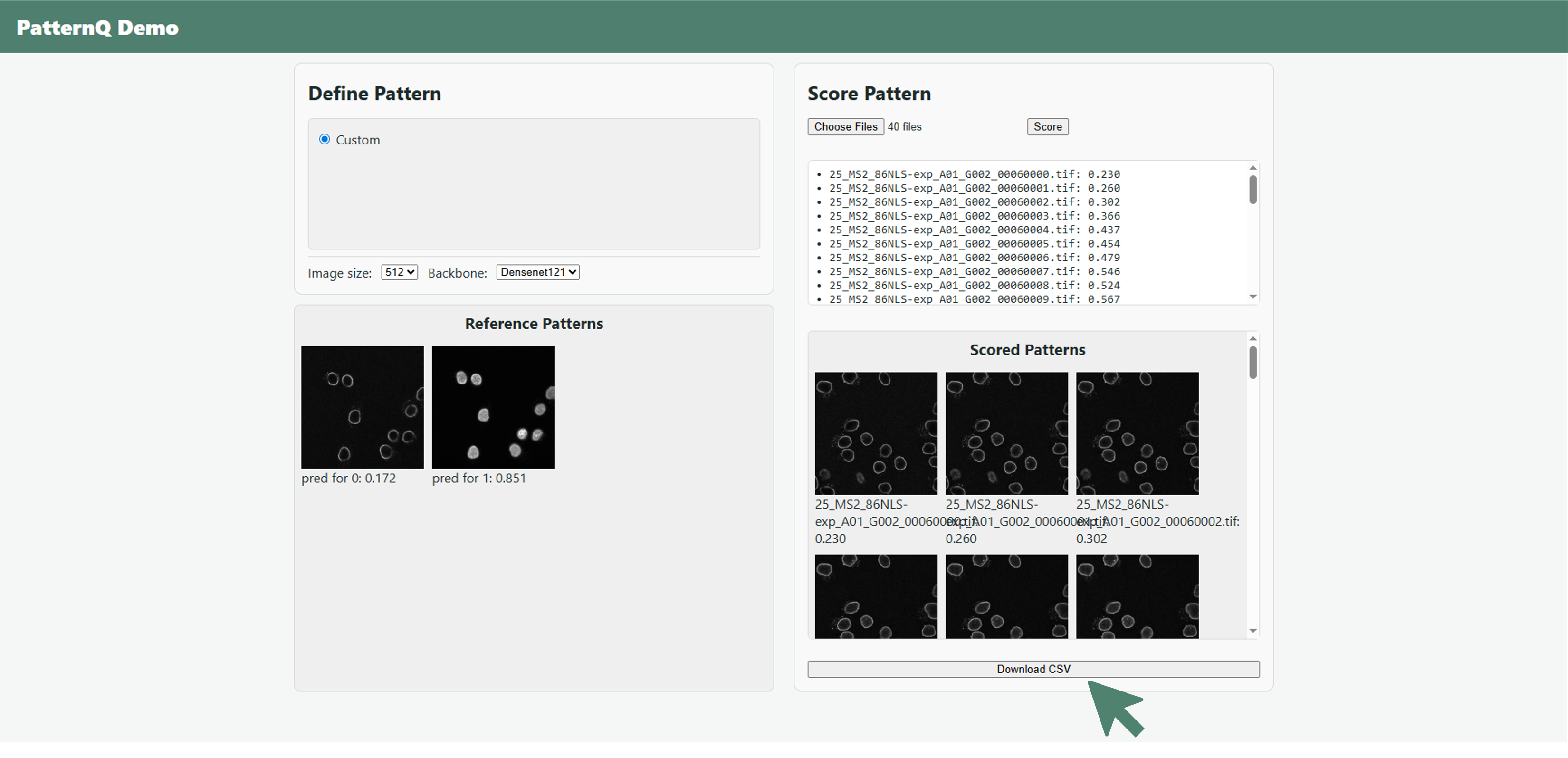

See thumbnails and download CSV — Done. You'll see images with scores in Scored Patterns. Download CSV to save.
